MODEL SHOWER ENCLOSURE SYSTEMS WITH DOORS

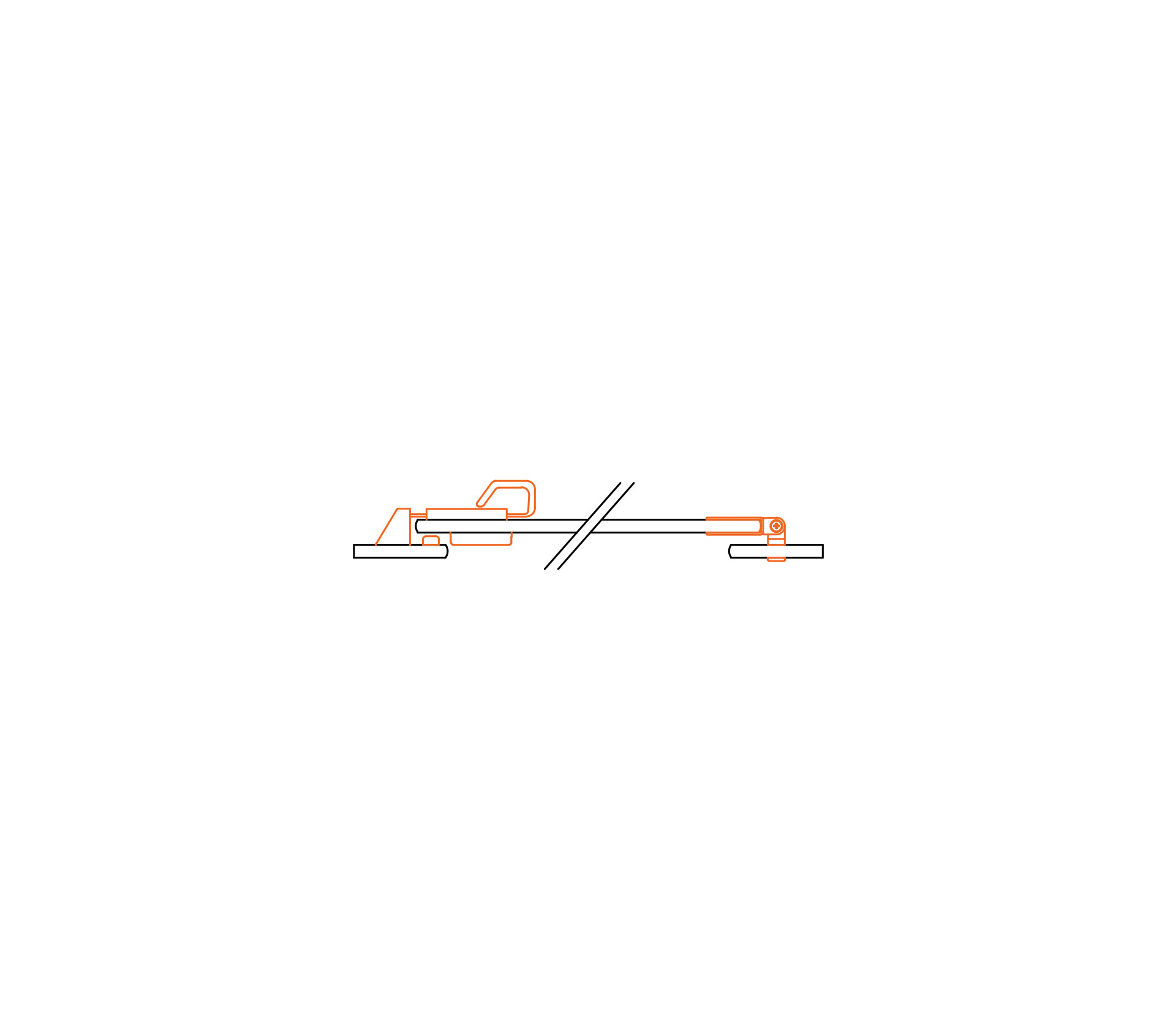

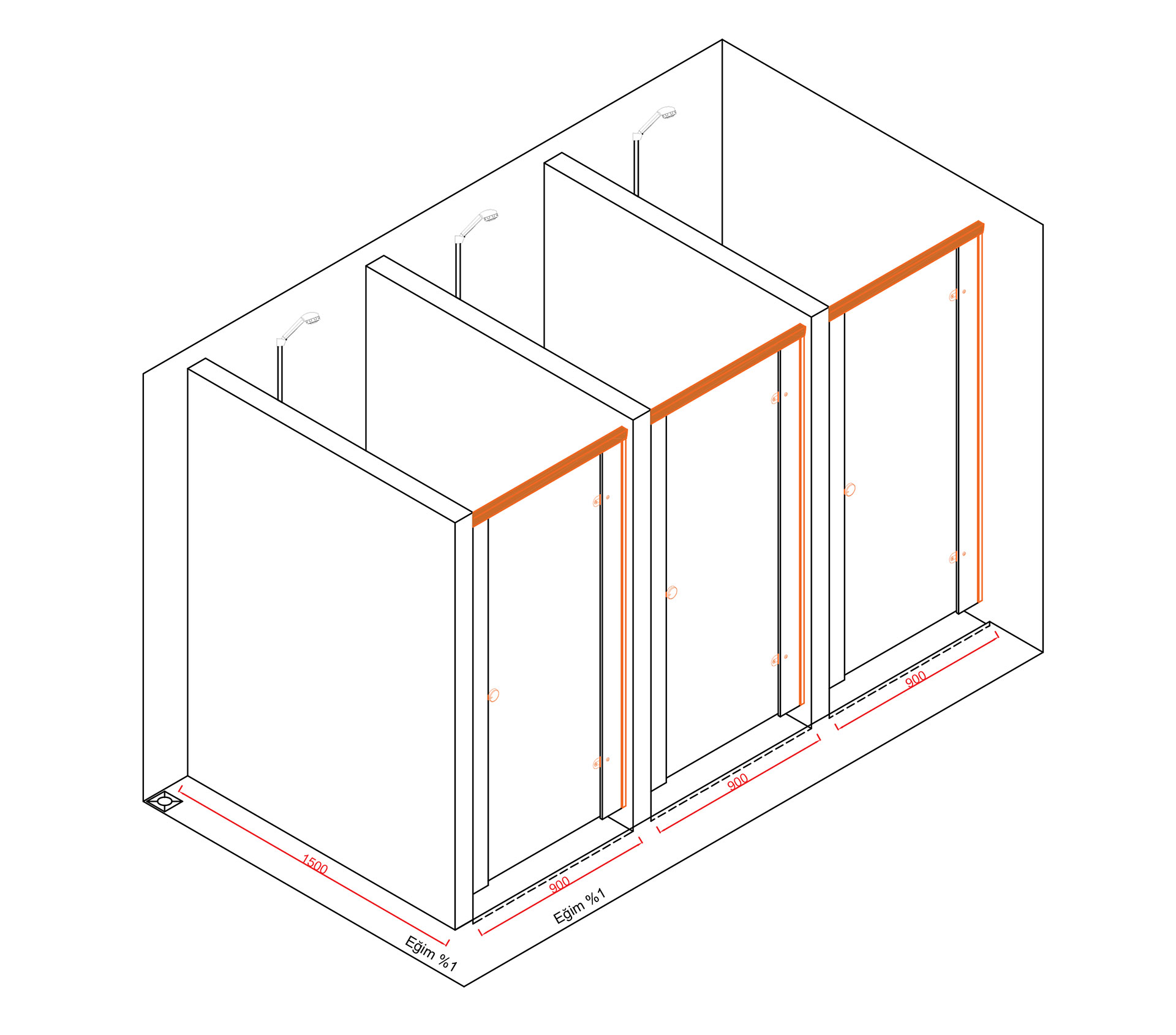

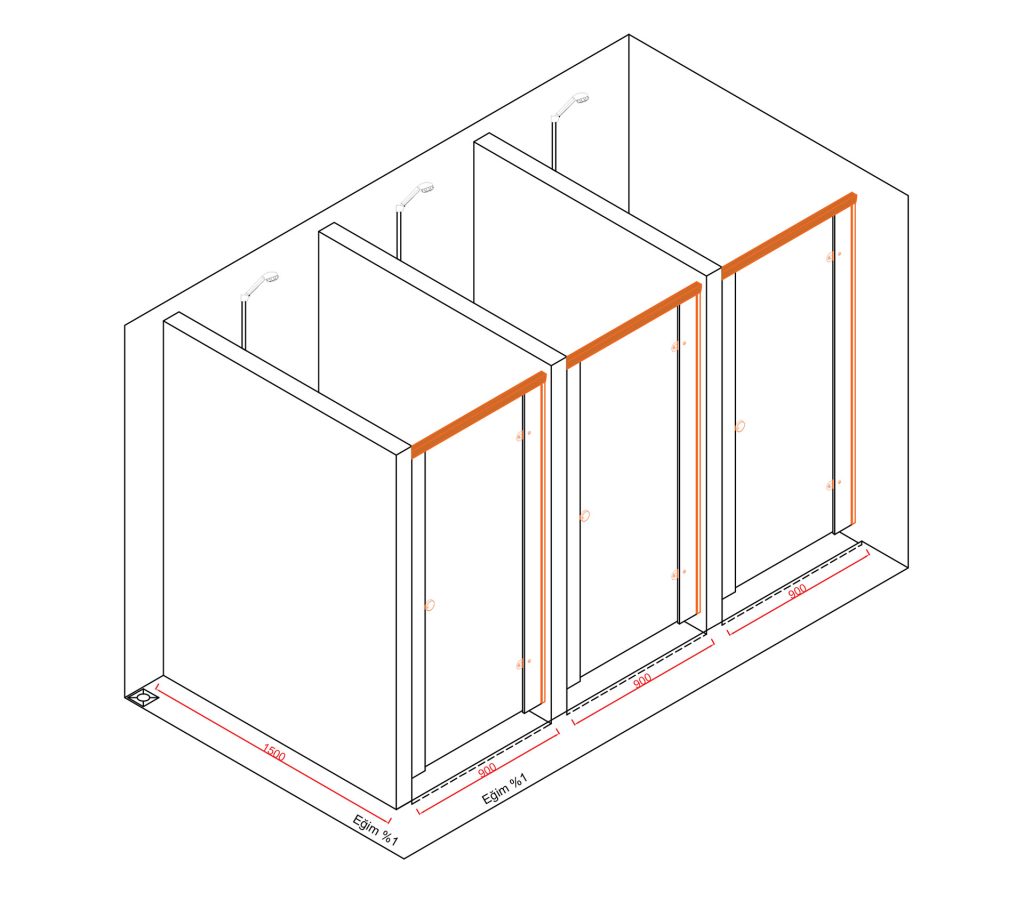

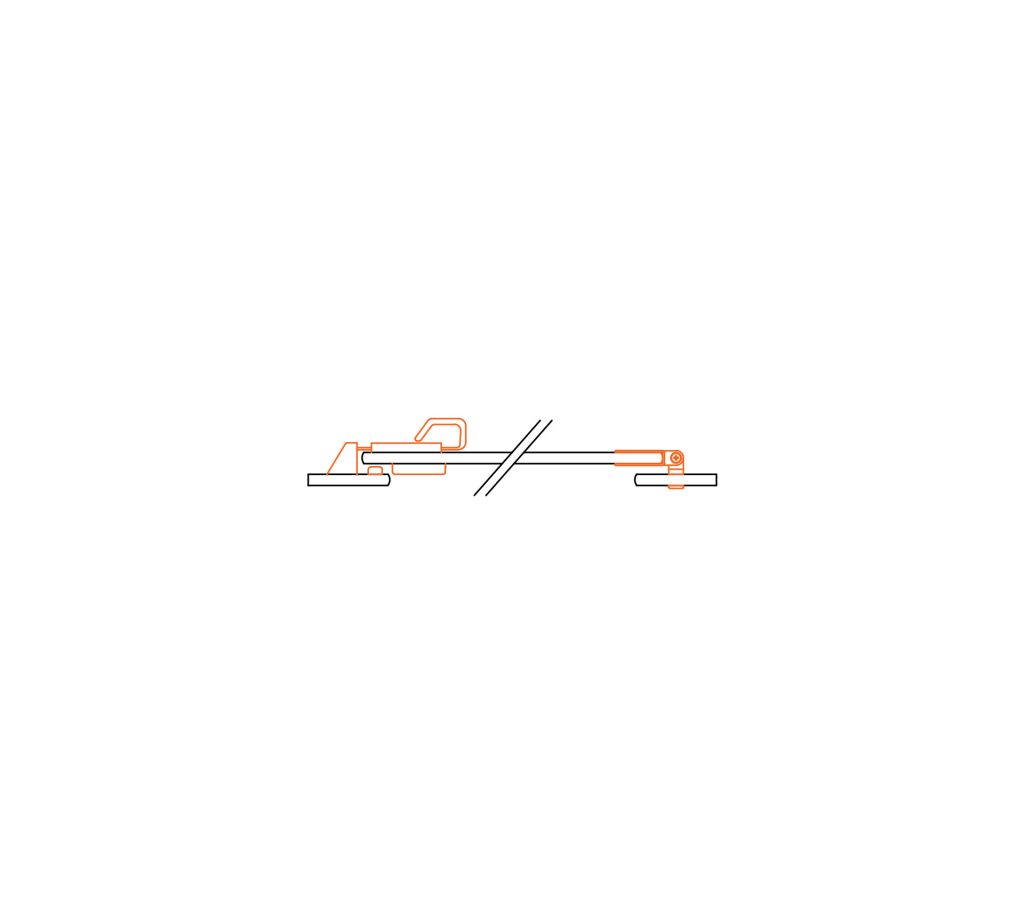

The door detail is a closing system, and the door and panels are not on the same straight line. The door operates from the rear, closing onto the panels on the right and left. The top closing mechanism, however, is on the same plane as the panels.

TECHNICAL DETAILS

You can download product details and technical drawings.

AutoCAD Project

Specification

PDF Catalog

Shop Drawing

ACCESSORIES

LOCK
Made from aluminum. It has a matte anodized finish. Designed for use in toilet cubicles with 12 mm compact laminate, 12 mm CDF panels, and other 18 mm panels. It is antibacterial. It has an indicator showing whether the cabinet is occupied or empty via a colored mechanism on the bolt lock. It can be accessed from the outside in case of emergencies. All connecting screws are stainless steel.

HINGE
Made of aluminum, it has a matte anodized finish. Also known as a panel-mounted hinge system, it is designed to overlap the right and left panels by 3 cm and operate behind them. It is designed for use in WC cubicles with 12 mm compact laminate, 12 mm CDF panels, and other 18 mm panels. Thanks to the plastic inside the shaft, the door has a self-closing feature, and can be left open if desired. All mounting screws are stainless steel.

HINGE

Made of aluminum, it has a matte anodized finish. Also known as a panel-mounted hinge system, it is designed to overlap the right and left panels by 3 cm and operate behind them. It is designed for use in WC cubicles with 12 mm compact laminate, 12 mm CDF panels, and other 18 mm panels. Thanks to the plastic inside the shaft, the door has a self-closing feature, and can be left open if desired. All mounting screws are stainless steel.

15 cm LEG
Made of aluminum, it has a matte anodized finish. It is mounted to the partition panel, or to one of the wall or middle panels. Designed for use in toilet cubicles with 12 mm compact laminate, 12 mm CDF panels, and other 18 mm panels. It allows cubicles to be mounted 15 cm above the ground. The feet are adjustable to adapt to the slope of the floor. It is antibacterial.

10 cm LEG
Made of aluminum, it has a matte anodized finish. It is mounted to the partition panel, or to one of the wall or middle panels. Designed for use in toilet cubicles with 12 mm compact laminate, 12 mm CDF panels, and other 18 mm panels. It allows cubicles to be mounted 10 cm above the ground. The feet are adjustable to adapt to the slope of the floor. It is antibacterial.

HANGER-STOP
Made of aluminum, it is resistant to bending. The bottom hook acts as a hanger, while the top hook serves as both a hanger and a stopper. The plastic material at the end of the hook helps to soften and reduce the impact of the door slamming shut. All mounting screws are stainless steel.

HANDLE
It is made of aluminum material. It can be mounted on both the inside and outside of the door, or just on the outside of the door. This model is only suitable for outward-opening doors and can be mounted on the door itself.

HEADER PROFILE
Made of aluminum. It has a matte anodized finish. It is mounted from the top of cabinets and on the sides of cabinets without walls. It is not suitable for mounting on partition panels. The profile has a thickness of 1 mm – 1.2 mm.

U PROFILE
It is made of aluminum material. It has a matte anodized color. It is used in cabinets between the partition panel and the wall, and between the partition panel and the middle panel. The profile has a thickness of 1 mm – 1.2 mm.
